The method I use to build a larger model ship with a normal freeboard involves building the hull in the form of a Plasticard 'box' and the then fixing a suitable superstructure to the hull.
The first stage is to cut two strips of Plasticard that will form the battleship's bow section.
In this instance I wanted the hull to fit within two Hexon II hexes (i.e. approximately 8.0”/20.0cm long and 2.0”/5.0cm wide), so each of the pieces that will form the sides of the bow section is cut to be 4.5"/11.5cm x 0.75"/2.0cm from 0.060"/1.5mm thick Plasticard.
When the two sides are glued together, they are supported by a triangular fillet of 0.080"/2.0mm Plasticard. Therefore the next task is to determine the angle the fillet needs to be cut at; I have found that the best method of doing this is by drawing it on a piece of paper thus:
As the sides of the bow section are going to be curved, the fillet must be cut at an angle that will help them curve realistically. Trial and error have shown that if the sides of the bow section are 4.5"/11.5cm long and the beam of the model is 2.0"/5.0cm, the best angle to use is the apex angle of a triangle with a base length of 4.0"/10.0cm and sides of 4.5"/11.5cm. This is approximately 55 degrees. (The actual angle used was 60 degrees as this was easier to measure and cut.)
Note 1: If the sides were longer or the beam wider, the angle would change as the dimensions of the triangle would change.
Note 2: The actual beam of the model ended up being 2.5"/6.25cm ... but I did not know this when I began construction of the model.
I chamfer the edges of the strips of Plasticard that are going to be glued together to form the ship's bow as this makes the assembly process easier. I also glue short vertical lengths of Plasticard (just less than 0.75"/2.0cm long) 2.5"/6.25cm from the bow edge on each inner side of the strips that will form the bow section. These form location points for internal strengthening later in the build process. In order to support the bow fillet I glue short horizontal lengths of Plasticard strip (each 0.5"/1.25cm long) onto the inner side of each bow side 0.4”/1cm behind the chamfered edge.
N.B. I use liquid cement to glue the pieces of Plasticard together. This does produce fumes when it is being used and can irritate the nose and throat if the gluing is not done in a well ventilated room. It is absolutely vital that any safety instructions are followed and obeyed.
The bow section is then carefully glued together and set aside to allow the glue to 'cure' for as long as possible. Because I want the bond between the two pieces of Plasticard to be as strong as possible, I usually leave the glue to 'cure' for five to six hours at least (overnight is even better).
Whilst the glue on the bow section is 'curing', I begin work on the stern section. In this instance I want the stern to curve so it is made of a single piece of 0.060"/1.5mm thick Plasticard that is 9.0"/22.5cm x 0.75"/2.0cm.
I glue short vertical lengths of Plasticard (just less than 0.75"/2.0cm long) 2.5"/6.25cm in from the short edges on the inner side of the strip that will form the stern section. These form location points for internal strengthening later in the build process.
I then glue a horizontal strip of 0.080"/2.0mm Plasticard that is 2.0"/5.0cm x just less than 0.75"/2.0cm long onto each end of the stern section strip so that they overlap each end of the strip by 1.0"/2.5cm. These will reinforce the join between the bow and stern sections when they are glued together.
Plasticard is flexible, and the thinner it is, the easier it is to bend into a curve. The 0.060"/1.5mm Plasticard used to make the stern section will bend into a curve, but because it is a thermoplastic it is easier to shape it if is warmed in very hot water and allowed to cool whilst it is held against some type of former.
In this case a former was made from basswood. The former is 2.0"/5.0cm wide and the end is cut to form the shape of the required curve.
The Plasticard strip that will form the stern section is clamped in place against the former, making sure that the centre of the strip lines up with the centre line on the former.
The former and strip are then gently held upright in a saucepan of boiling water for about ten to fifteen seconds, making sure that they do not touch the sides or bottom of the pan.

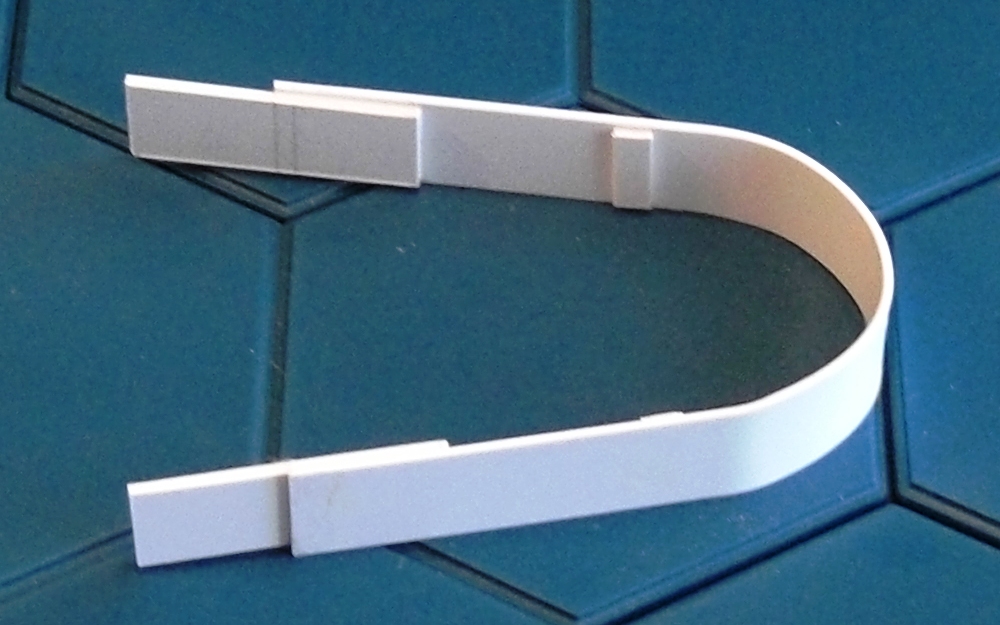

When the former and strip are removed from the boiling water, they are left to cool. This usually takes a couple of minutes. The clamps are then undone and the stern strip is removed. It should now be shaped into the required curve.

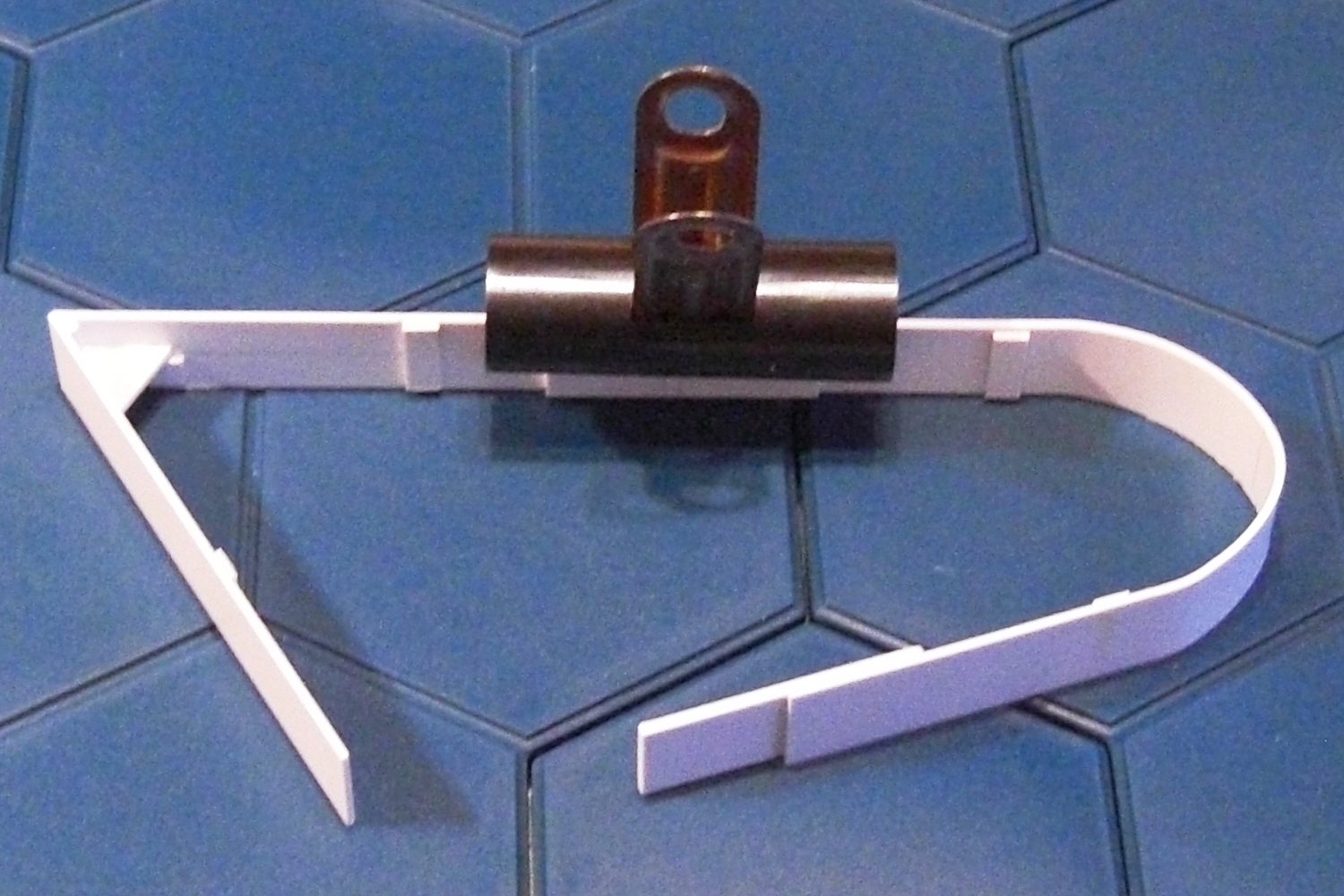

Once the glue holding the bow section together has 'cured', I glue the bow and stern sections together. I glue one side of the stern section to one side of the bow section using glue applied to the reinforcing strips, and clamp them together whilst the glue 'cures'.
When the glue holding the two pieces together has 'cured', I glue and clamp the other sides together.
Once the glue in the second join has 'cured' I begin the process of adding internal cross-pieces that will hold the sides of the 'box' the correct distance apart as well as giving the 'box' an additional degree of strength and rigidity. The cross-pieces are cut from 0.080"/2.0mm Plasticard (the central cross-pieces) or 0.060"/1.5mm Plasticard (the front and rear cross-pieces). The central cross-pieces (which are 2.5"/6.25cm x 0.75"/2.0cm) are glued in place at each end of the reinforcing strips, and clamps are used to hold the assembly rigid whilst the glue 'cures'.
The front and rear cross-pieces can then be glued in place using the Plasticard location points previously fixed to each internal side of the bow and stern sections.
Once the glue has ‘cured’ I then add a bottom (usually made from 0.020”/0.05mm Plasticard) by placing the ‘box’ onto the sheet of Plasticard, gluing it in place with liquid cement, and – once the glue has ‘cured’ – cutting around the edge of the ‘box’ very carefully.
The top deck is added in the same way, but I use 0.040”/0.10mm Plasticard as it needs to be somewhat more substantial.
The hull of my ship is then ready to have a superstructure added to it.
The first stage is to cut two strips of Plasticard that will form the battleship's bow section.
In this instance I wanted the hull to fit within two Hexon II hexes (i.e. approximately 8.0”/20.0cm long and 2.0”/5.0cm wide), so each of the pieces that will form the sides of the bow section is cut to be 4.5"/11.5cm x 0.75"/2.0cm from 0.060"/1.5mm thick Plasticard.
When the two sides are glued together, they are supported by a triangular fillet of 0.080"/2.0mm Plasticard. Therefore the next task is to determine the angle the fillet needs to be cut at; I have found that the best method of doing this is by drawing it on a piece of paper thus:
As the sides of the bow section are going to be curved, the fillet must be cut at an angle that will help them curve realistically. Trial and error have shown that if the sides of the bow section are 4.5"/11.5cm long and the beam of the model is 2.0"/5.0cm, the best angle to use is the apex angle of a triangle with a base length of 4.0"/10.0cm and sides of 4.5"/11.5cm. This is approximately 55 degrees. (The actual angle used was 60 degrees as this was easier to measure and cut.)
Note 1: If the sides were longer or the beam wider, the angle would change as the dimensions of the triangle would change.
Note 2: The actual beam of the model ended up being 2.5"/6.25cm ... but I did not know this when I began construction of the model.
I chamfer the edges of the strips of Plasticard that are going to be glued together to form the ship's bow as this makes the assembly process easier. I also glue short vertical lengths of Plasticard (just less than 0.75"/2.0cm long) 2.5"/6.25cm from the bow edge on each inner side of the strips that will form the bow section. These form location points for internal strengthening later in the build process. In order to support the bow fillet I glue short horizontal lengths of Plasticard strip (each 0.5"/1.25cm long) onto the inner side of each bow side 0.4”/1cm behind the chamfered edge.
N.B. I use liquid cement to glue the pieces of Plasticard together. This does produce fumes when it is being used and can irritate the nose and throat if the gluing is not done in a well ventilated room. It is absolutely vital that any safety instructions are followed and obeyed.
The bow section is then carefully glued together and set aside to allow the glue to 'cure' for as long as possible. Because I want the bond between the two pieces of Plasticard to be as strong as possible, I usually leave the glue to 'cure' for five to six hours at least (overnight is even better).
Whilst the glue on the bow section is 'curing', I begin work on the stern section. In this instance I want the stern to curve so it is made of a single piece of 0.060"/1.5mm thick Plasticard that is 9.0"/22.5cm x 0.75"/2.0cm.
I glue short vertical lengths of Plasticard (just less than 0.75"/2.0cm long) 2.5"/6.25cm in from the short edges on the inner side of the strip that will form the stern section. These form location points for internal strengthening later in the build process.
I then glue a horizontal strip of 0.080"/2.0mm Plasticard that is 2.0"/5.0cm x just less than 0.75"/2.0cm long onto each end of the stern section strip so that they overlap each end of the strip by 1.0"/2.5cm. These will reinforce the join between the bow and stern sections when they are glued together.
Plasticard is flexible, and the thinner it is, the easier it is to bend into a curve. The 0.060"/1.5mm Plasticard used to make the stern section will bend into a curve, but because it is a thermoplastic it is easier to shape it if is warmed in very hot water and allowed to cool whilst it is held against some type of former.
In this case a former was made from basswood. The former is 2.0"/5.0cm wide and the end is cut to form the shape of the required curve.
The Plasticard strip that will form the stern section is clamped in place against the former, making sure that the centre of the strip lines up with the centre line on the former.
The former and strip are then gently held upright in a saucepan of boiling water for about ten to fifteen seconds, making sure that they do not touch the sides or bottom of the pan.
When the former and strip are removed from the boiling water, they are left to cool. This usually takes a couple of minutes. The clamps are then undone and the stern strip is removed. It should now be shaped into the required curve.
Once the glue holding the bow section together has 'cured', I glue the bow and stern sections together. I glue one side of the stern section to one side of the bow section using glue applied to the reinforcing strips, and clamp them together whilst the glue 'cures'.
When the glue holding the two pieces together has 'cured', I glue and clamp the other sides together.
Once the glue in the second join has 'cured' I begin the process of adding internal cross-pieces that will hold the sides of the 'box' the correct distance apart as well as giving the 'box' an additional degree of strength and rigidity. The cross-pieces are cut from 0.080"/2.0mm Plasticard (the central cross-pieces) or 0.060"/1.5mm Plasticard (the front and rear cross-pieces). The central cross-pieces (which are 2.5"/6.25cm x 0.75"/2.0cm) are glued in place at each end of the reinforcing strips, and clamps are used to hold the assembly rigid whilst the glue 'cures'.
The front and rear cross-pieces can then be glued in place using the Plasticard location points previously fixed to each internal side of the bow and stern sections.
Once the glue has ‘cured’ I then add a bottom (usually made from 0.020”/0.05mm Plasticard) by placing the ‘box’ onto the sheet of Plasticard, gluing it in place with liquid cement, and – once the glue has ‘cured’ – cutting around the edge of the ‘box’ very carefully.
The top deck is added in the same way, but I use 0.040”/0.10mm Plasticard as it needs to be somewhat more substantial.
The hull of my ship is then ready to have a superstructure added to it.
