The tower sections of my modular fortress were constructed from two 50mm x 50mm squares of MDF and eleven sections of 50mm-long pine. I used a water-proof white wood glue to glue the various components together.
To construct a single tower I began by gluing the narrower edge of one of the pine sections to one of the squares of MDF, thus:
I then glued the narrower edge of a second section of pine to the square of MDF, thus:
I then trimmed a third section of pine so that it fitted into the gap between the first two pieces, and glued its narrow edge to the square of MDF, thus:
I then trimmed a fourth section of pine so that it fitted into the gap between the first two pieces, and glued its narrow edge to the square of MDF, thus:

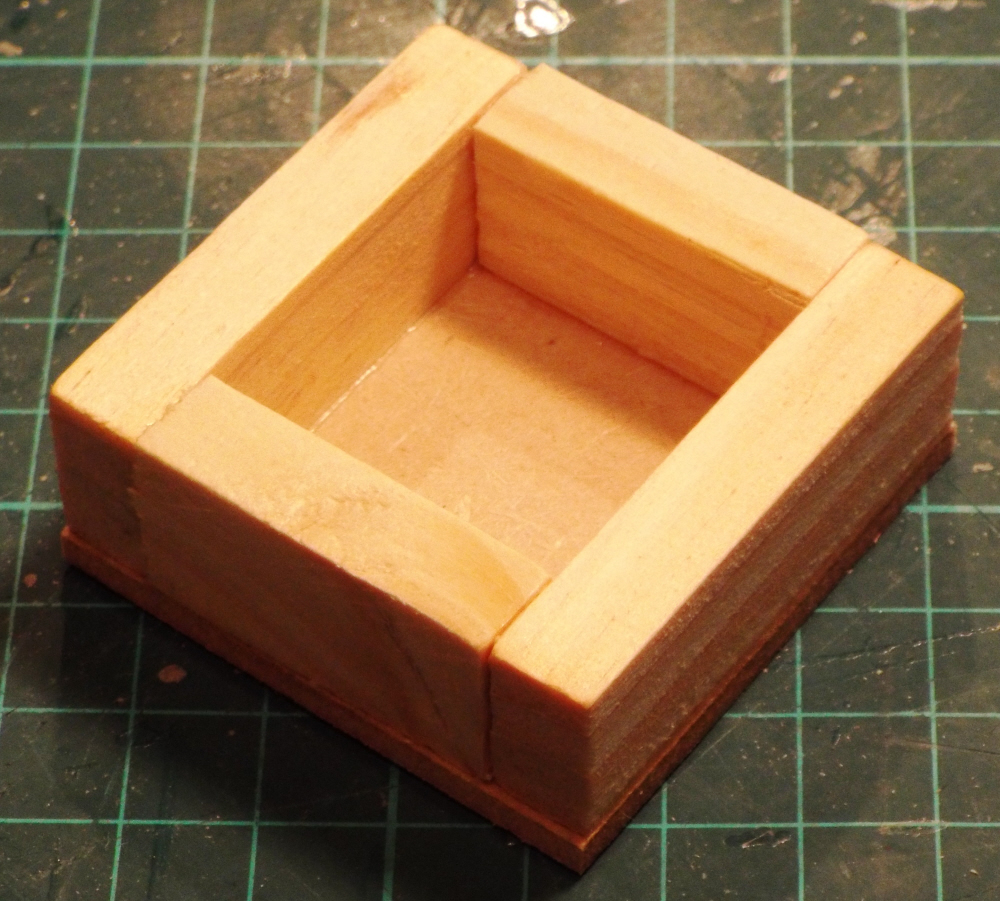

This completed the first level of my tower. I then turned the tower through ninety degrees, and glued and trimmed (where necessary) the next layer of four pieces of pine to the first level, thus:
This completed the second layer of my tower. I then turned the tower through ninety degrees, and glued the narrower edge of the ninth section of pine to the top of the second level, thus:
I then glued the narrower edge of the tenth section of pine to the top of the second level, thus:
Because I wanted my tower to appear to have firing slits/windows on two sides of the upper levels, I glued two of the trimmed off-cuts to the top of the second level, thus:
I then glued the second square of MDF on top of the third level of the tower, thus:
(This formed the roof of the tower)
I finished by gluing the narrow edge of the eleventh section of pine on top of the tower's roof, thus:
(This created the tower's parapet.)
The construction of the tower was now complete, and as can be seen from the following photographs, my 15mm-scale Essex Miniatures fit rather well atop the tower.
I have now constructed six such towers. It took me three days to build all six as at each stage in the construction process I waited for the glue to completely set before moving on to the next stage.
The final part of the modular fortress that I intend to build is the gateway, after which I will seal all the wooden surfaces with PVA glue prior to painting them.
To construct a single tower I began by gluing the narrower edge of one of the pine sections to one of the squares of MDF, thus:
I then glued the narrower edge of a second section of pine to the square of MDF, thus:
I then trimmed a third section of pine so that it fitted into the gap between the first two pieces, and glued its narrow edge to the square of MDF, thus:
I then trimmed a fourth section of pine so that it fitted into the gap between the first two pieces, and glued its narrow edge to the square of MDF, thus:
This completed the first level of my tower. I then turned the tower through ninety degrees, and glued and trimmed (where necessary) the next layer of four pieces of pine to the first level, thus:
This completed the second layer of my tower. I then turned the tower through ninety degrees, and glued the narrower edge of the ninth section of pine to the top of the second level, thus:
I then glued the narrower edge of the tenth section of pine to the top of the second level, thus:
Because I wanted my tower to appear to have firing slits/windows on two sides of the upper levels, I glued two of the trimmed off-cuts to the top of the second level, thus:
I then glued the second square of MDF on top of the third level of the tower, thus:
(This formed the roof of the tower)
I finished by gluing the narrow edge of the eleventh section of pine on top of the tower's roof, thus:
(This created the tower's parapet.)
The construction of the tower was now complete, and as can be seen from the following photographs, my 15mm-scale Essex Miniatures fit rather well atop the tower.
I have now constructed six such towers. It took me three days to build all six as at each stage in the construction process I waited for the glue to completely set before moving on to the next stage.
The final part of the modular fortress that I intend to build is the gateway, after which I will seal all the wooden surfaces with PVA glue prior to painting them.
