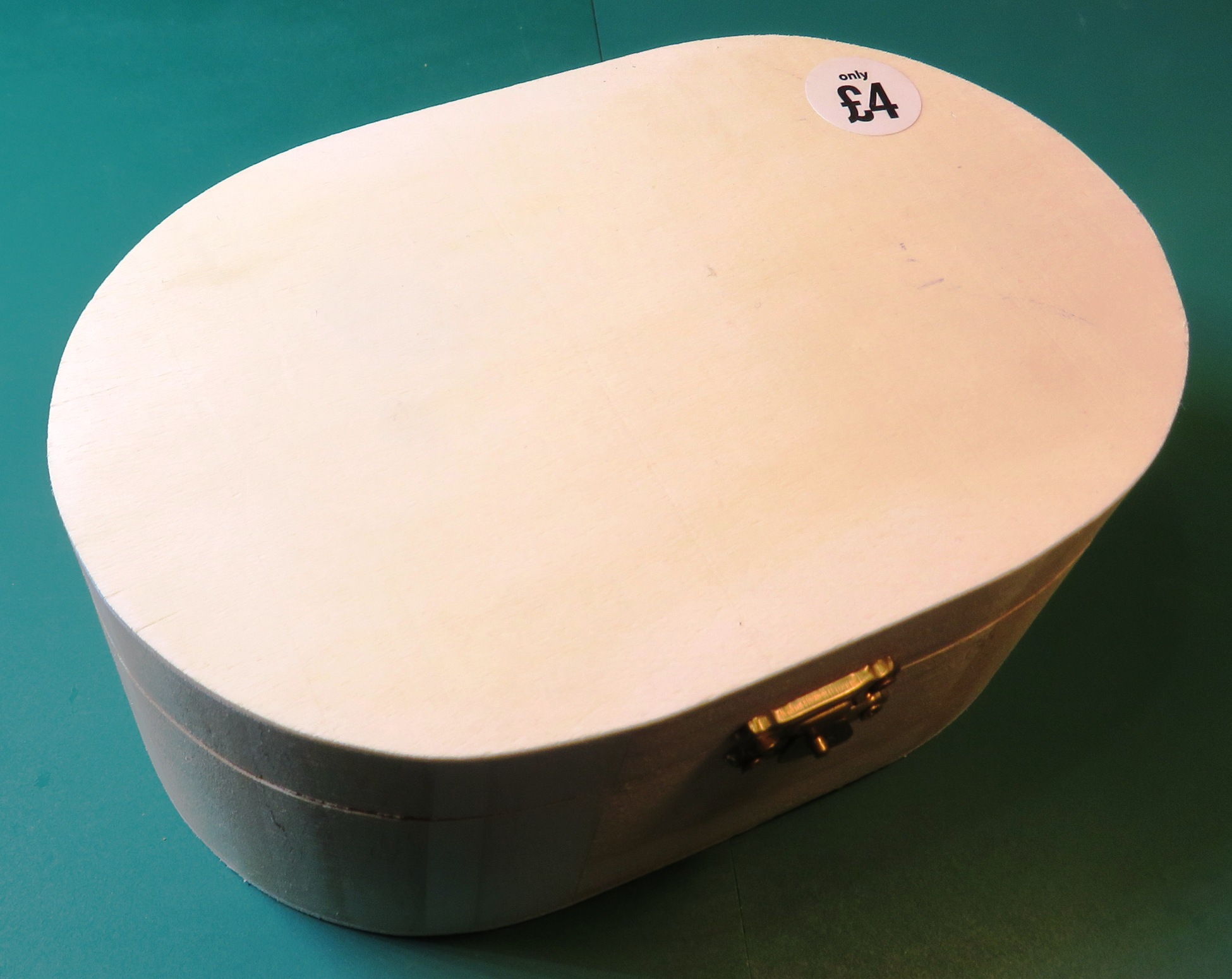

Like the Brennan torpedo launching station, the Mucking Battery (which was also known as Fort Bean) began life as a wooden box from THE WORKS. In this case it was a large oval jewellery box that cost me £4.00.
I removed the lid from the box and put the bottom part to one side. I then filled in the screw holes with a mixture of PVA and fine sawdust.
On the bottom I marked and drilled two holes 50mm from each end of the centreline.
I then created the two gun mountings, starting with the pivots. These were made by three small hexagons of thin plywood, topped with a small circle of plywood.
I drilled a small hole though each one before using PVA glue to glue them into position.
(Please note that I used a small 1-inch nail pushed up through each of the holes I had drilled to act as a guide and to make sure that the pieces making up each pivot were correctly aligned.)
.jpg)
